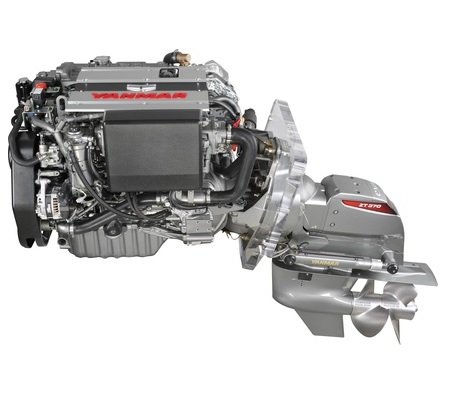

Yanmar 4LV250 Inboard Diesel Engine

New Yanmar 4LV250 Inboard Diesel Engine 4 Cylinder, 2.75-liter diesel engine, Turbocharged, Gears – KMH50A / KMH50V, Stern Drive – ZT370. The 4LV proves to be an extremely efficient engine without any compromise on quality. Featuring the newest system in common-rail technology, the mid-range engines deliver maximum performance and reliability, while maintaining minimal fuel consumption and exceptionally low noise & emission levels. By exceeding the strict EPA Tier 3 and EU RCD Stage 2 emission regulations, the engines feature virtually smoke and odor free operation.Equally, the 4LV doesn’t disappoint in performance. The 2.8 L displacement delivers a powerful low-end torque performance. This results in a stuing acceleration and really sets these engines apart from others in their power range.

Yanmar 4LV250 Inboard Diesel Engine Specifications:

Rated Output : 184 kW / 250 mhpnRated Speed : 3800 rpmnDisplacement : 2.755 L / 168 cu. iNo. of cylinders : 4 cylindersnCylinder Bore x Stroke : 92 mm x 103.6 mm / 3.6 in x 4 iCombustion system : Direct Injection, Denso Common Rail SystemnAspiration : Turbocharged & IntercoolednAlternator : Denso 12V – 130AnDry weight without gear : 334 kg / 736 lbsnDimensions : 1151 mm x 755 mm x 772 mmnControls : Mechanical (optional – VC10 system)nCertifications : RCD 2 IMO Tier 2 EPA Tier 3 BSO II EMC SOLAS

Standard Engine Package

– Exhaust mixing elbow [L-type]*n- Through drive exhaust**n- Alternator 12V – 130An- B25 panel*n- VC10 Vessel Control System**n- Power steering**n- Mechanical throttle sensor*n- Flexible mountsn- Fresh water expansion tank*Inboard modeln**Sterndrive model

Optional Accessories

– High-riser mixing elbow [instead of L-elbow]*n- Through hull exhaust**n- Secondary alternator 12V – 130A or 24V – 110A including smart regulatorn- Extension harness [3m, 5m, 10m, 20m]n- Second statio- C35 panel*n- Sidemount control head*n- VC10 Vessel Control System*n- JC20 Inboard Joystick*n- JC10 Sterndrive Joystick**n- NMEA2000 Engine monitoring systemn- Internal tie-barn- Semi 2-polen- SOLAS including Certificate [factory fit only]n- Hot water coectio- Water separatorn- Man Over Board Switch (single)n- C-Type trolling (KMH50 only)*n- On-board spare parts kit
