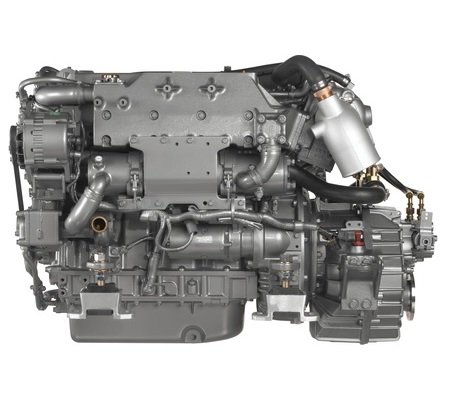

Yanmar 4LHA DTP Inboard Diesel Engine

New Yanmar 4LHA-DTP Inboard Diesel Engine 4 Cylinder, 3.46-liter diesel engine, Turbocharged, Gears – KMH50A / ZF63A. LH Series 118–177kW (116–240HP) Tough, reliable, compact and with outstanding power-to-weight benefits, these four-cylinder direct injection Yanmars in the LH Series include sterndrive models. The turbocharger has a wastegate boost compensator to improve acceleration still further. LH Series 4LHAM-HTP (160HP/118kW) Turbocharged, direct injection four-cylinder diesel power with outstanding power to weight ratio. Supplied as bob-tail unit so that you can choose your transmission type.

Yanmar 4LHA DTP Inboard Diesel Engine Specifications:

Rated Output : 147 kW / 200 mhpnRated Speed : 3300 rpmnDisplacement : 3.45 L / 211 cu. iNo. of cylinders : 4 cylindersnCylinder Bore x Stroke : 100 mm x 110 mm / 3.94 in x 4.33 iCombustion system : Direct Injection, In-line PumpnAspiration : Turbocharged & IntercoolednAlternator : 12V – 80AnDry weight without gear : 365 kg / 805 lbsnDimensions : 1131 mm x 719 mm x 811 mmnControls : MechanicalnCertifications : RCD 1, BSO II, EMC, SOLAS

Standard engine package

– Exhaust mixing elbow [L-type]n- Alternator 12V – 80An- 3G instrument panel

Optional accessories

– High-riser mixing elbow [instead of L-elbow]n- Flexible mountsn- Extension wire harness [3m, 5m, 10m, 20m]n- SOLAS including Certificate [factory fit only]n- Air venting device for cooling water tankn- Lube oil evacuation pumpn- Water separatorn- Trolling valve [only for KMH50A]
