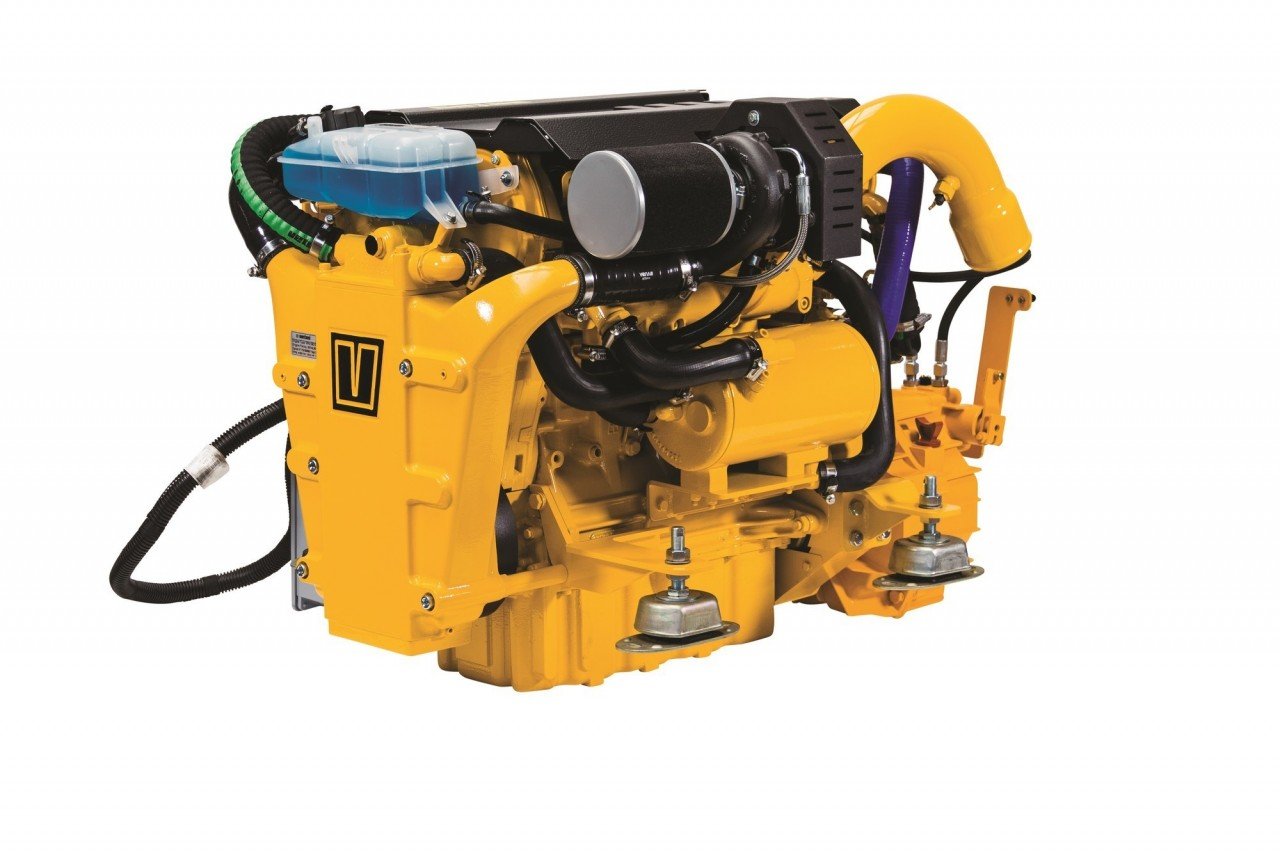

VETUS VF4.200 Marine Diesel Engine

New VETUS VF4.200 Marine Diesel Engine

nThe next generation VF 4 cylinder common-rail engines with variable geometry turbochargers, which range from 145hp to 190 hp. They are compact, lightweight and have an excellent power to weight ratio.nFurthermore, they are very fuel efficient. The new VF4 has a CAN bus system with SAEJ1939 protocol but can also be used for NMEA2000. They suit new builds like RIB’s, small tenders and light weight motor boats perfectly and are alsonvery suitable as a replacement engine. The new VF4 fits to the same footprint as the previous model.The new engines can be recognized from the V-shaped intercooler and a newly designed top cover which can be used as a step and gives this range the well-known VETUS appearance.nThe wiring is of high-grade material and therefore less prone to interference. Components are rearranged for better accessibility and maintenance. The VF engines are available in gearbox and sterndrive version.nAs an option the engines can be supplied with a potentiometer in case a mechanical remote control is required.The VF line meets the RCDS2013/53/EU emission regulations.

VETUS VF4.200 Marine Diesel Engine Specifications:

Number of cylinders : 4nConfiguration : 4-stroke cycle, twin camshaft, 16 valvesnBore x stroke (mm) : 83×90,4 mmnDisplacement : 1956 cm3nAlternator : 12 V/105 AnGearbox, standard : ZF45nOption : VF4.200 – TM485A / ZF45A, ZF63IV, Bravo I -II – IIInDry weight (kg) : 320nCombustion system : Direct injection, common-rail dieselnAspiration : Turbocharged with variable geometry turbonCooling system, standard : Intercooler / Indirect coolingnMax. mounting inclination : 10° backwardsMaximum Output:at the flywheel (ISO 3046-1) : 140 kW (190 hp)nat the prop shaft (ISO 3046-1) : 135.8 kW (184.3 hp)nat no. of revolutions of : 4100 rpmnTorque : 355 Nm (36.2 kgm, 262 ft.lb)nat no. of revolutions : 2300 rpmFuel consumption : 237 g/kW.h (174 g/hp.h, 6.1 oz/hp.h)
